Built for 60 inch cab to axle chassis cabs
Aluma Tray HD-60 chassis cab flatbed for 60 inch cab to axle
Built for 60 inch cab to axle chassis cabs and rated to 5,000 lbs. The 7 inch bulkhead is included.
Starting at $17,820 USD
- Rated load, evenly distributed
- 5,000 lbs
- Tray weight
- ≥ 840 lbs
- Typical lead time
- About 8 weeks
A chassis cab flatbed for 60 inch cab to axle trucks
The Aluma Tray HD-60 is a chassis cab flatbed for domestic commercial chassis cabs with a 60 inch cab to axle measurement, from the 1 ton up. Cab to axle is the distance from the back of the cab to the center of the rear axle, and it is the number that decides which tray fits a chassis cab.
It is rated to 5,000 lbs evenly distributed and starts at $17,820 USD with the bulkhead included. If your chassis measures 84 inches cab to axle, the HD-84 is in development for it.
Closed up
How it sits on the truck

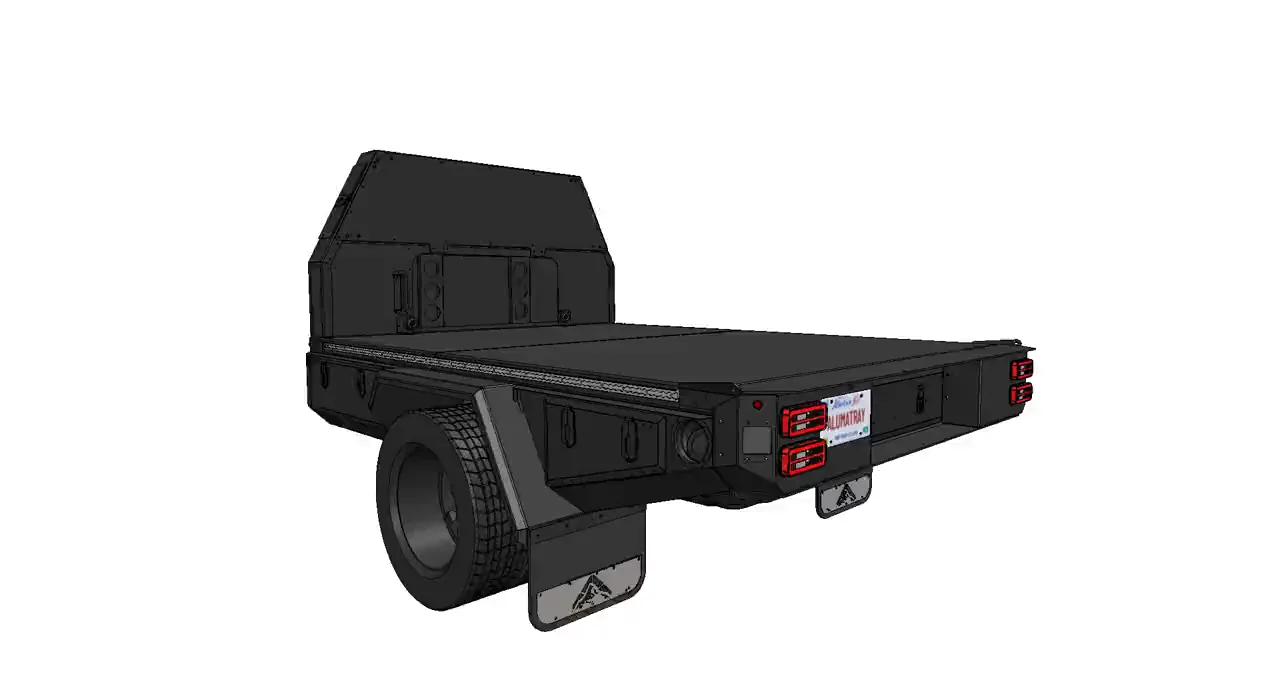

The tray shut, turned through a full circle straight from the build files. Shown on a dual rear wheel chassis, so the dually fenders are fitted. Drag it round to look.
- Deck measures 9'02" long by 7' wide
- Full width 84 inch tapered bulkhead, included, with a dual locking sealed upper compartment
- Lower bulkhead compartment stores the folding stairs behind a locking sealed door on the passenger side
- Four locking under-deck storage boxes, doors sealed with non-memory welded rubber
- Camper tie down securement brackets on the side, front and back
Specifications
Full specs
Aluma Tray HD-60 specifications
- Fits
- 1 ton chassis cab, 60 inch cab to axle
- Load capacity
- 5,000 lbs (2,273 kg)Evenly distributed
- Tray weight
- ≥ 840 lbs
- Vacant deck
- 9'02" long x 7' wideAs built
- Deck surface
- Rhino Lined
- Construction
- CNC cut and formed high strength aluminum, powder coated
- Storage
- Four locking under-deck boxes
- Bulkhead
- 7" tapered, full width 84"Included
- Lead time
- About 8 weeksVaries with how busy the shop is
- Starting price
- $17,820 USD
Standard features
- Powder coated CNC cut and formed high strength aluminum
- Rhino Lined deck surface
- Four locking under-deck storage boxes with weep holes and sealed doors
- Fully isolated from the chassis with powder coated steel mounts and urethane bushings
- Anodized aircraft L-Track along both sides of the deck
- Weighted mudflap kit and rock guards for the rear boxes
- Fuel and DEF fills built into the bulkhead for above-deck filling
- DOT LED lighting, two brake, signal and back lights per side
- Trailer plug, 4 and 7 pin connector
- Mounts to dealer drilled chassis locations on 5 inch SIL rails
- Full width 84 inch bulkhead with a dual locking sealed upper compartment
- Lower bulkhead compartment stores the folding stairs behind a locking sealed door on the passenger side
- Driver side lower compartment houses the fuel and DEF fills
- Camper tie down securement brackets on the side, front and back
- TorkLift Derringer compatible camper anchor points
- Rated to 5,000 lbs evenly distributed
Every compartment
What opens up

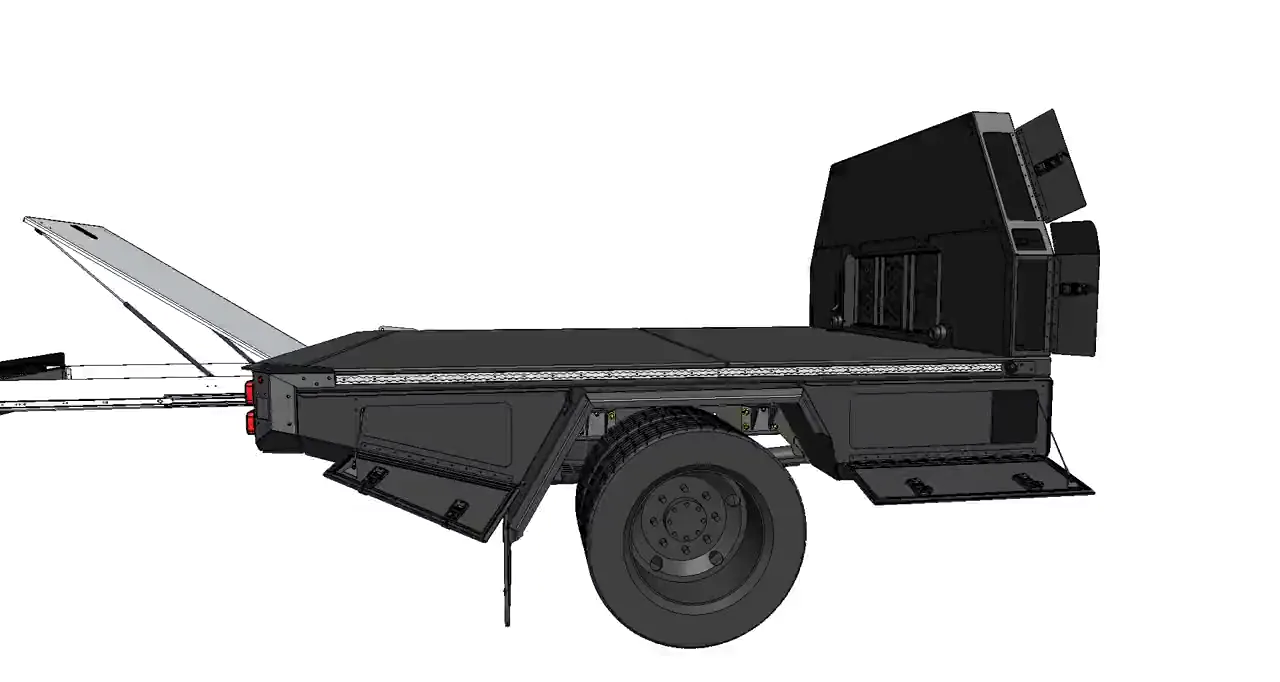

The same tray with the under-deck boxes, both bulkhead compartments and the folding stairs open at once, which no photograph in the set shows. Drag it round to look.
Pricing
What a build costs
The starting price is the tray. These items are priced separately because they depend on your truck.
Required
- Tray to chassis mounting kitRequiredSpecific kit determined by your truck$1,166
- Fuel kitRequired$290 gas, $290 diesel without DEF, $542 diesel with DEFPriced by truck
- Dually fendersRequiredOnly if your truck is dual rear wheel$2,268

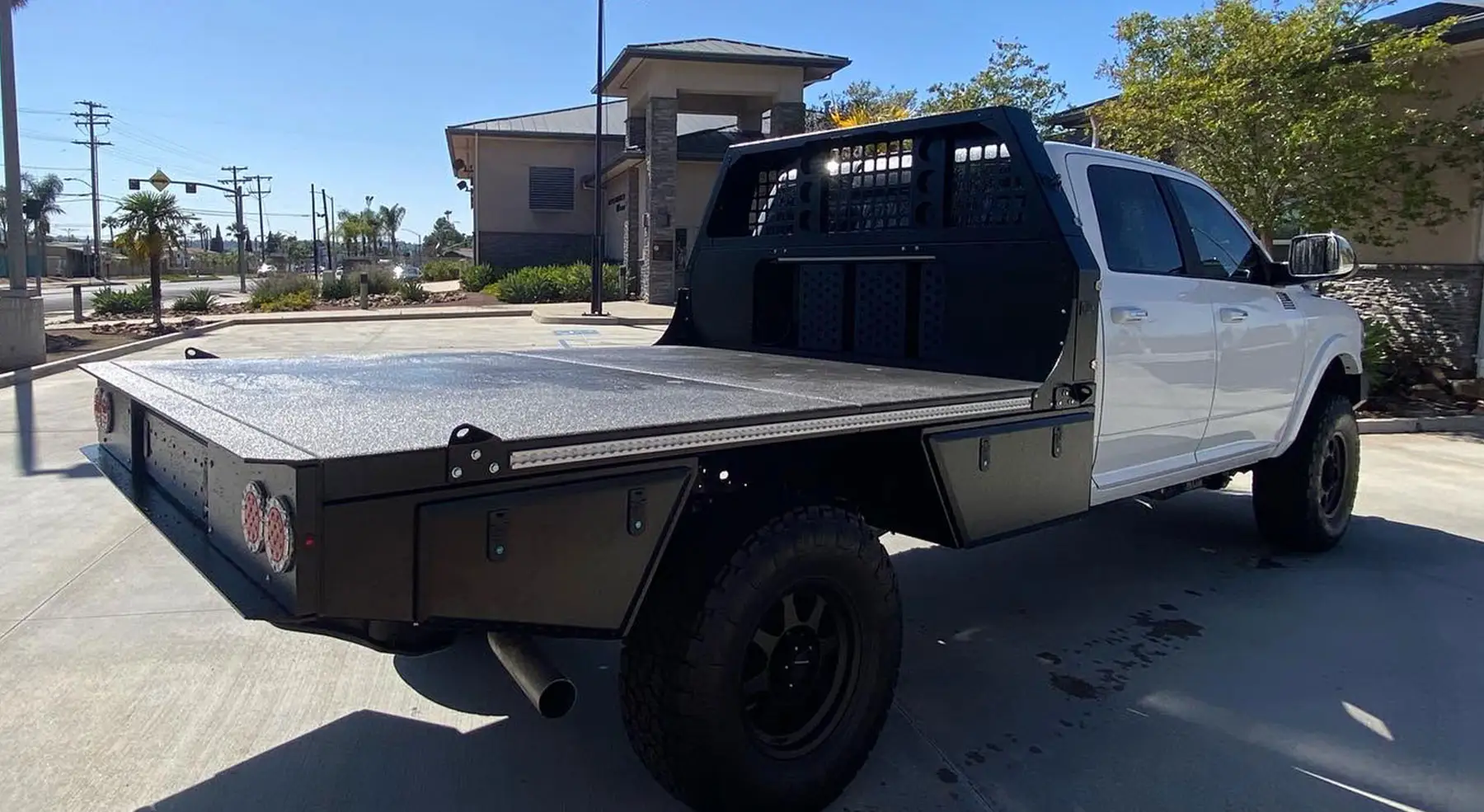

Aluma Tray HD-60 builds
Click any photo to open it larger. Arrow keys step through the set.
Ready to spec your build?
Tell us your truck, your camper and how you travel. We will tell you which tray fits and what it costs, in writing.
Trucks this flatbed fits
1 ton chassis cab, 60 inch cab to axle. Open your truck to see which configurations take the Aluma Tray HD-60.
Common questions
What is an Aluma Tray?
An Aluma Tray is an aluminum flatbed that replaces your truck's factory bed so you can carry a slide-in or flatbed truck camper. Every model is CNC cut and formed from high strength aluminum, powder coated, and finished with a Rhino Lined deck. They are built by Lite Industries in Red Deer, Alberta.
Which trucks does an Aluma Tray fit?
Aluma Trays fit full size 3/4 ton and 1 ton trucks, plus 1 ton chassis cabs with a 60 inch cab to axle measurement. The 6.75' replaces a short box, the 8' replaces a long box, and the HD-60 and HD-60-HC mount to a 60 inch cab to axle chassis. For an 84 inch cab to axle chassis, see the HD-84. We do not make trays for midsize trucks.
How much does an Aluma Tray cost?
Starting prices are $11,819 USD for the 6.75', $12,879 for the 8', $17,820 for the HD-60 and $19,075 for the HD-60-HC. Every build also needs a tray to chassis mounting kit at $1,166 and a fuel kit priced by your truck, and the 6.75' and 8' need a front bulkhead, which starts at $3,329. All pricing is USD. The HD-84 has no published price yet.
How much weight can an Aluma Tray carry?
The 6.75' and 8' are rated to 3,000 lbs evenly distributed. The HD-60 and HD-60-HC are rated to 5,000 lbs evenly distributed. Those ratings assume the load is spread across the deck, not concentrated in one spot.
What is the lead time on an Aluma Tray?
Typical lead time is about 8 weeks. Talk to your dealer or to us directly for current build slots, because lead time moves with order volume.
Does the Aluma Tray come with a warranty?
Yes. Every Aluma Tray carries a one year limited base warranty and a three year limited structural warranty from Lite Industries. You must register the warranty within 30 days of purchase for coverage to activate, and the warranty covers personal use only.
What does 60 inch cab to axle mean?
It means the distance from the back of the cab to the center of the rear axle is 60 inches. On a chassis cab that figure is usually published by the manufacturer. The Aluma Tray HD-60 is built for 60 inch cab to axle, so measure yours before you order.
Is the bulkhead included on the HD-60?
Yes. The bulkhead is included in the $17,820 USD starting price. On the HD-60 it is 7" tapered, full width 84".
Does the HD-60 fit an F-450, F-550, Ram 4500 or Ram 5500?
Yes, when the chassis is built with a 60 inch cab to axle. The HD-60 fits any domestic commercial chassis cab at that measurement, not only the 1 ton, so measure yours before you order.
